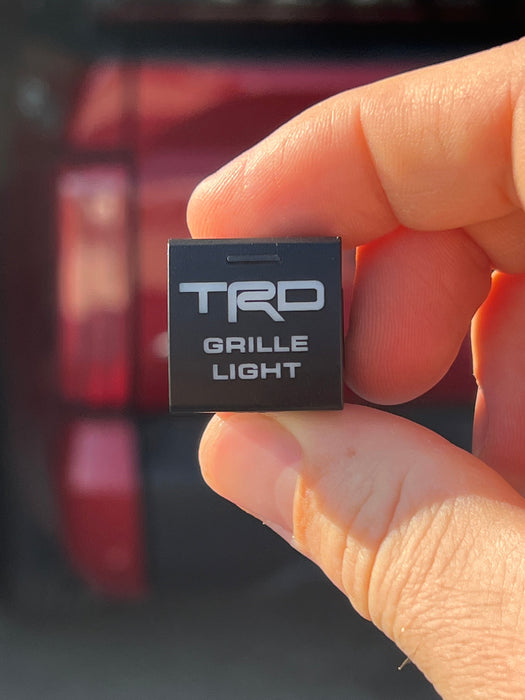

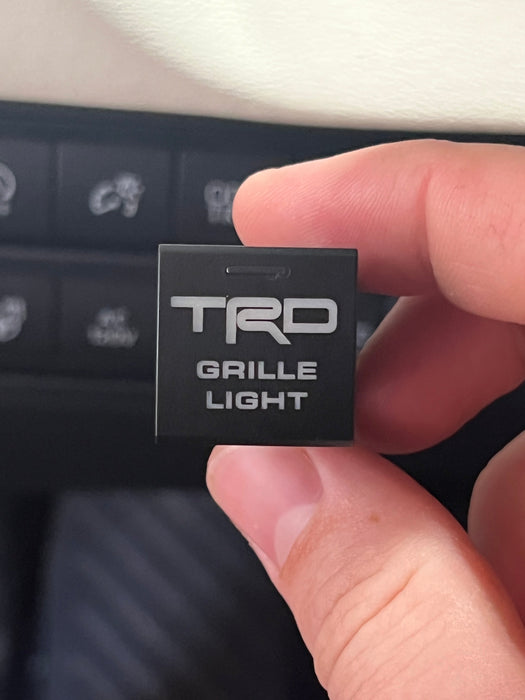

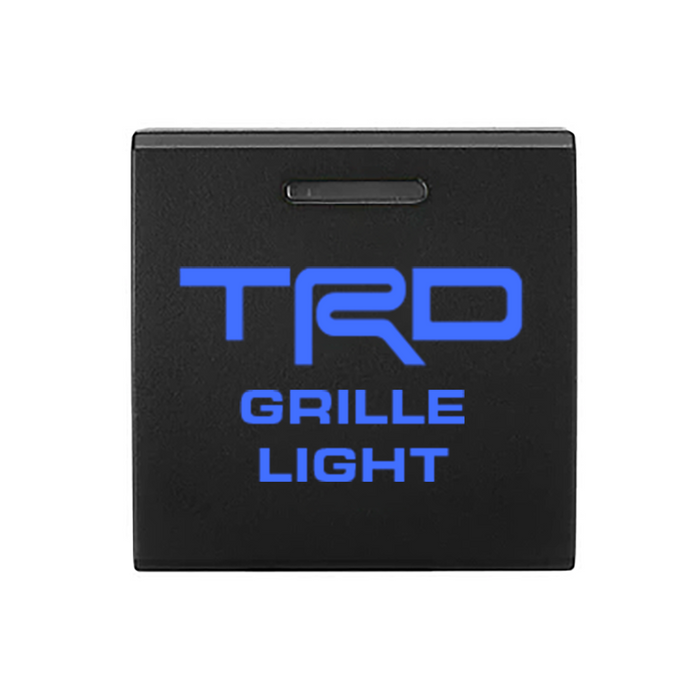

Rave TRD "Grille Light" Dash Switch

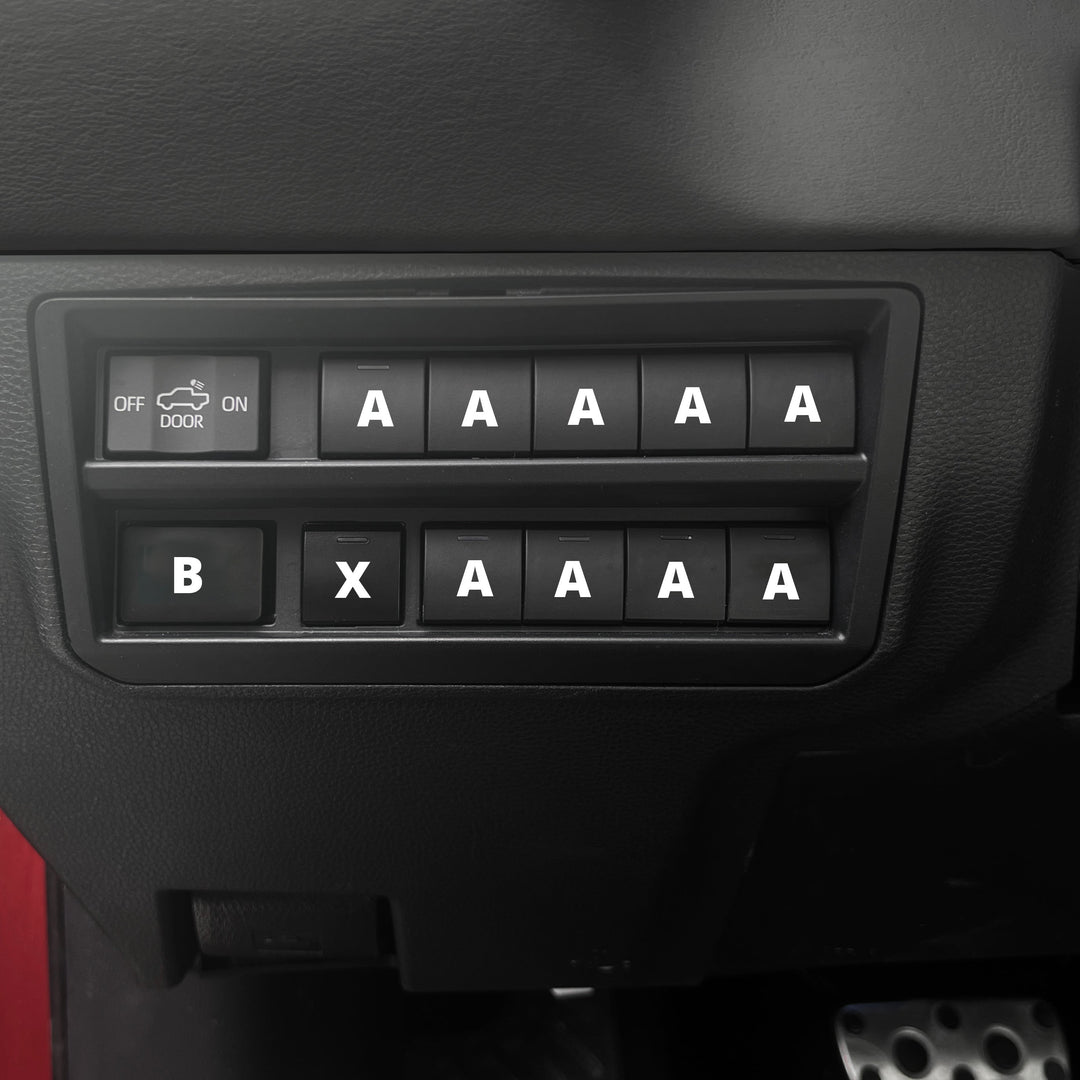

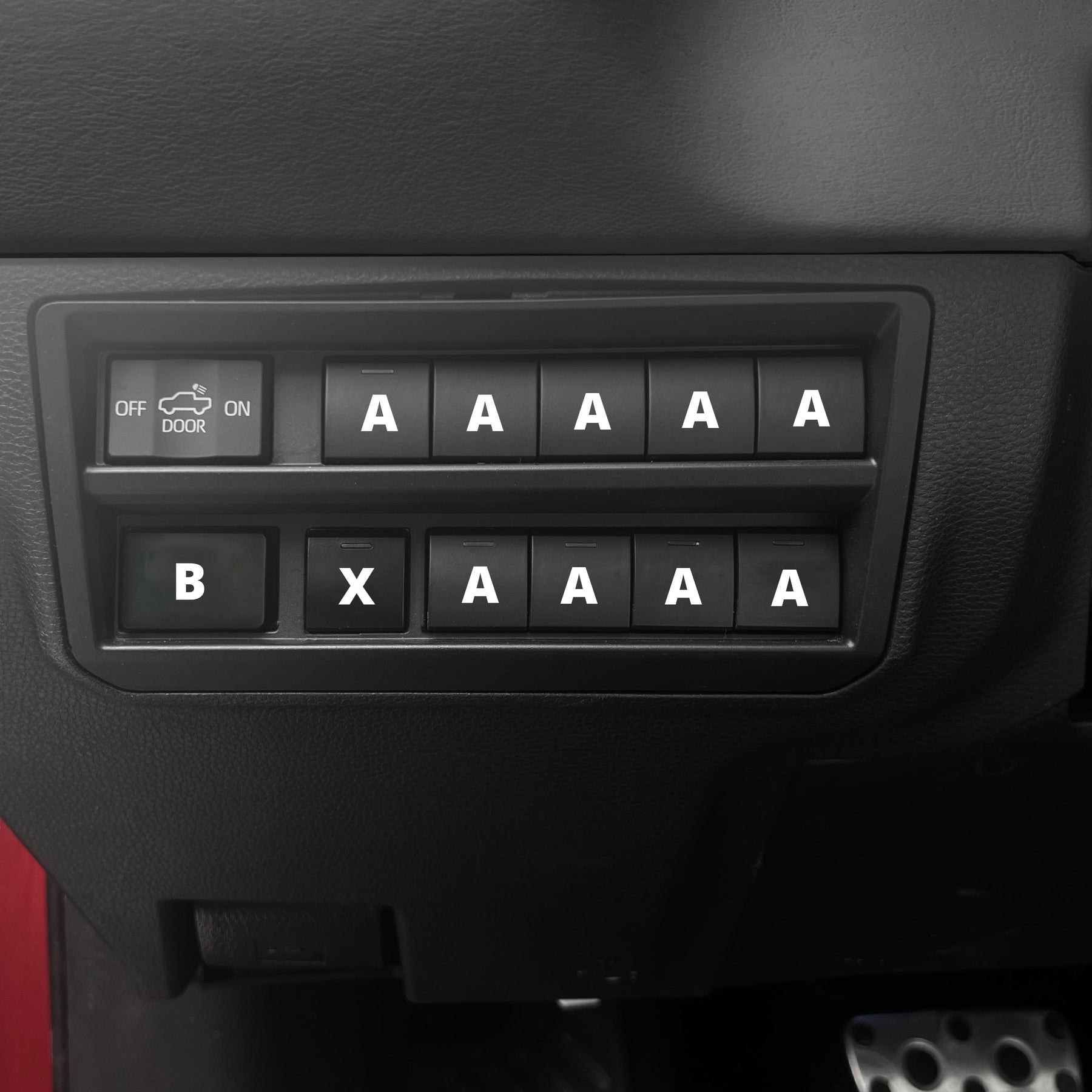

Fits the Toyota mini 20mm square dash switches. See dash cluster picture, fits all "A" spots.

Found in the 2022+ Tundra left of the steering wheel.

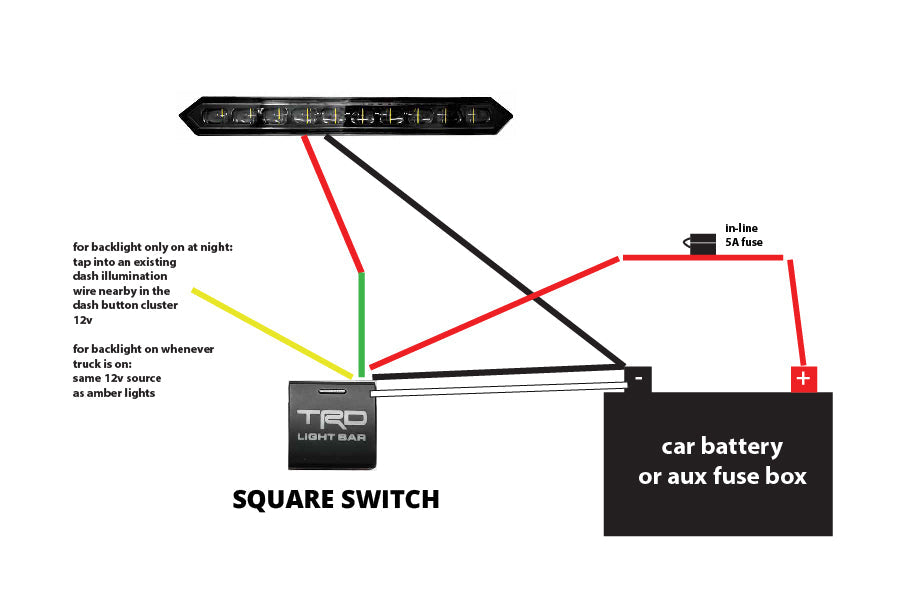

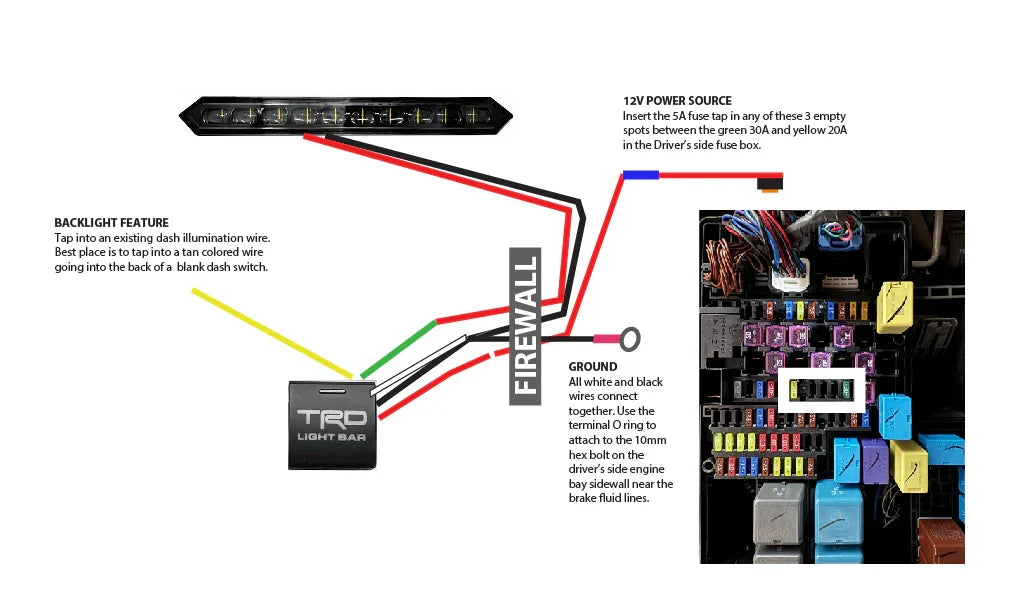

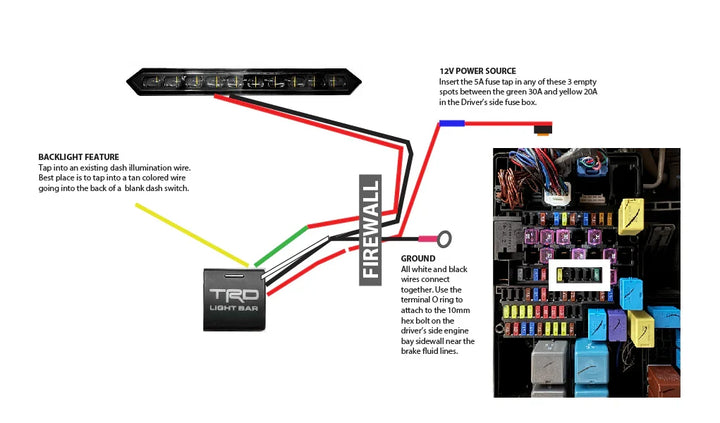

Pigtail Wire Guide:

Green: 12V OUT - to Accessory or Relay,

Yellow: 12V IN - Backlight

Red: 12V IN - Illuminates the status light when engaged and provides power to accessory

Black and White - Negative
