Toyota Tacoma Prinsu Top Rack | 2005-2021 | Short/Long Bed
We know how important it is to get the size you need and want, so we've tried to make that process much easier!
|SIZE LABEL||LENGTH||WIDTH||SLEEVE LENGTH|
|L||30 ¼||22||18 ¼|
|XL||31 ¼||24||19 ½|
|2XL||32 ½||26||20 ¾|
LEAD TIME: 5+ WEEKS.
ALL CANCELS WILL RESULT IN A 20% CANCELLATION FEE.

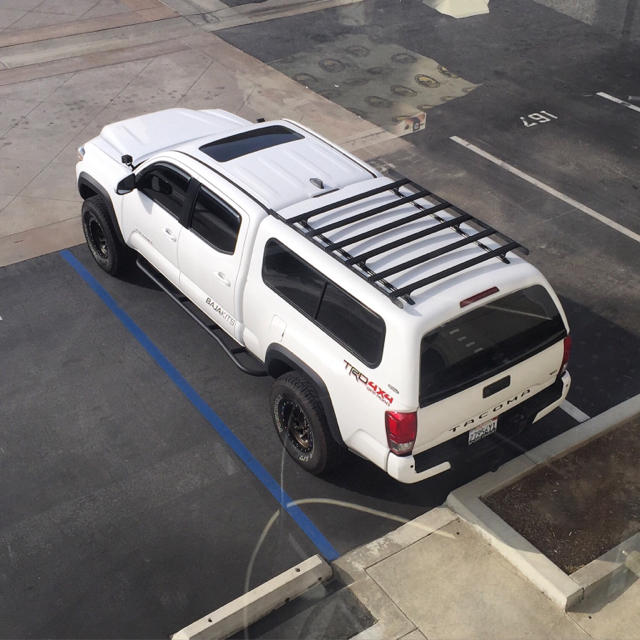

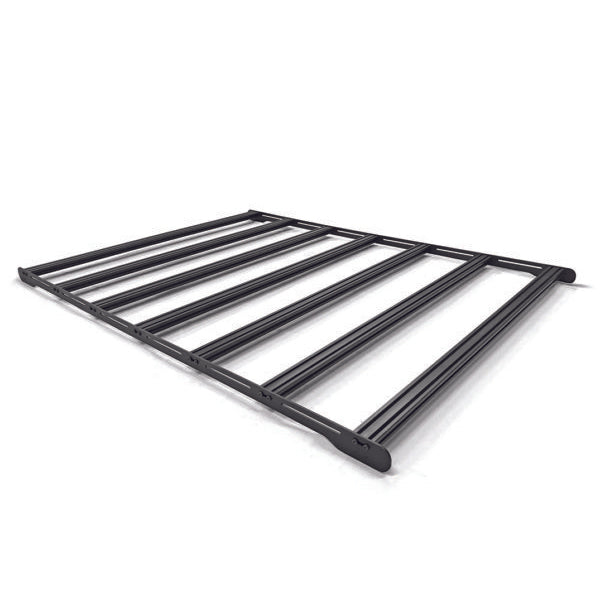

The Prinsu Roof Rack is a modular, adjustable, and completely bolt together roof rack for the 2005-2019 Toyota Tacoma. Available in both double cab and access cab configurations. The rack consists of 2 laser cut side rails constructed of 3/16″ 5052 aluminum plate. The crossbars are made from a 2″ x 1″ aluminum extrusion that has 4 T slot channels and the Prinsu exclusive “drop points.” This offers numerous solutions for tie-down options, cargo security, and the addition of accessories such as tool mounts or lighting. The rack comes shipped with a black powder coat finish. All assembly hardware comes in a black zinc finish. The rack also includes a 1/8″ 5052 aluminum plate wind deflector to help with aerodynamics and prevent wind noise.
Options for integrating a light bar are available. See our packaged deals.
The rack is completely modular in that you choose how your rack is configured. Refer to the gallery for an example of standard configurations we have used based on different load sizes and weights. You can also choose the number of crossbars you assemble your rack with. The rack comes standard with 6 cross bars for cargo and 1 additional for mounting of a wind deflector, lightbar or combination of the two.
CabRack for Double-cab Tacoma (NO Drilling Required)
These rails have 3 mounting tabs each that will allow you to bolt the rack into the 5 factory mounting holes on each side of the roof. This design allows the addition of this roof rack without drilling or modification to your vehicle.
AccessRack for Access-cab Tacoma (Drilling REQUIRED!!!)
These rails have 3 mounting platforms each that will allow you to bolt the rack into 12 rivet nut plus nuts that you will install (REQUIRES drilling). The 6 plus nuts on each side of the roof provide a secure mounting system for the rack. This rack will require you to drill 6 holes in each of the 2 channels on the rooftop.
All Prinsu racks come powder coated satin black and complete, ready to install.
Material: 3/16″ 5052 aluminum plate, 2″ x 1″ aluminum crossbars, 1/8″ 5052 aluminum plate wind deflector
Weight: 50 lbs.
Dimensions: 66 × 9 × 8 in
Fitment: 2005-2021 Toyota Tacoma
