Name: 05-23 2nd/3rd Gen Tacoma 2.5" Coilover Lift Kit
Brand: Locked Offroad Shocks
SKU: LKD-00046
Price: 1750.0 USD
Availability: InStock

05-23 2nd/3rd Gen Tacoma 2.5" Coilover Lift Kit

$1,750.00

Shipping calculated at checkout.

Spring Rate

600 lb

650 lb

700 lb

Rear Shocks

None

OEM Replacement(most common)

12" Smooth Body Shock

In stock, ready to ship
Backordered, shipping soon

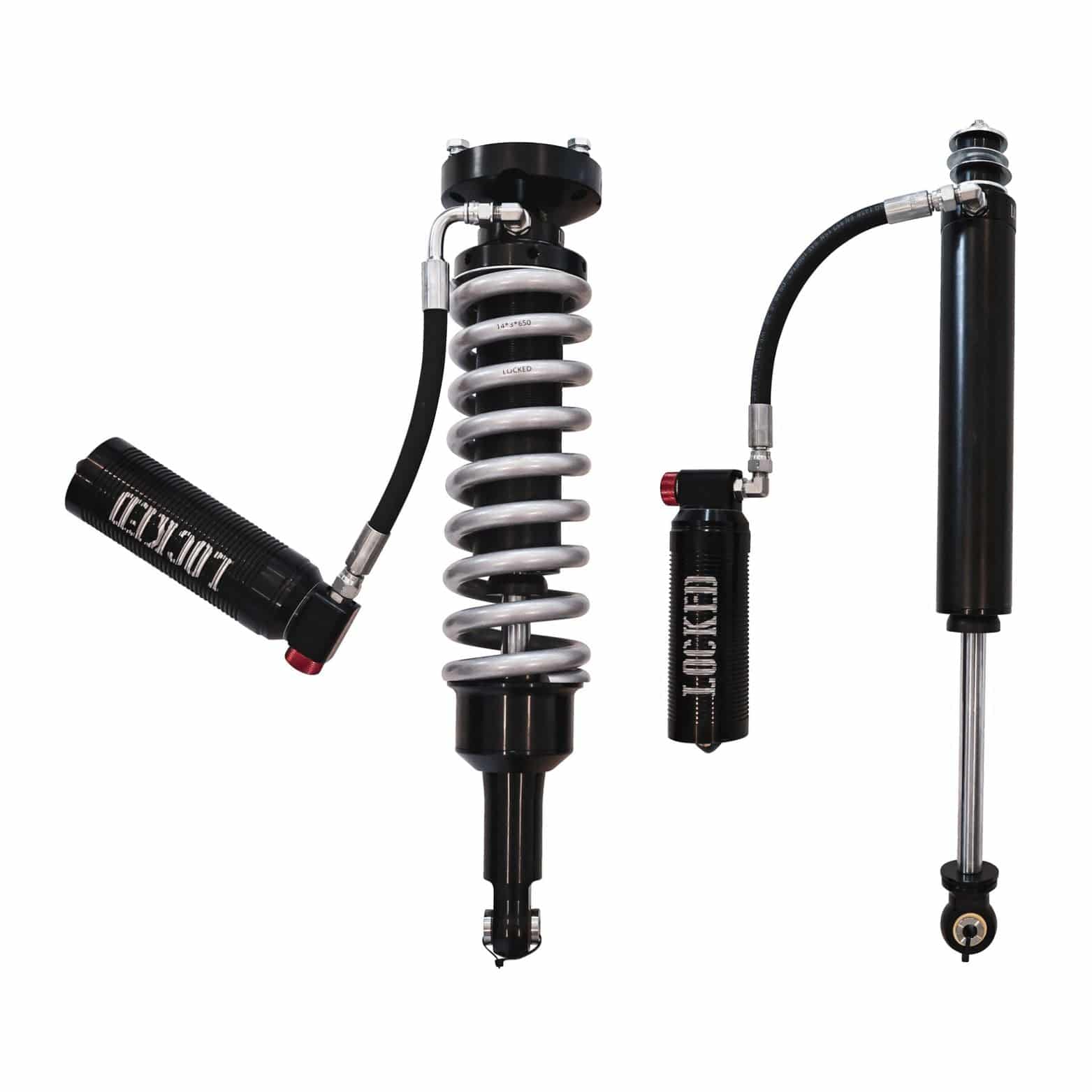

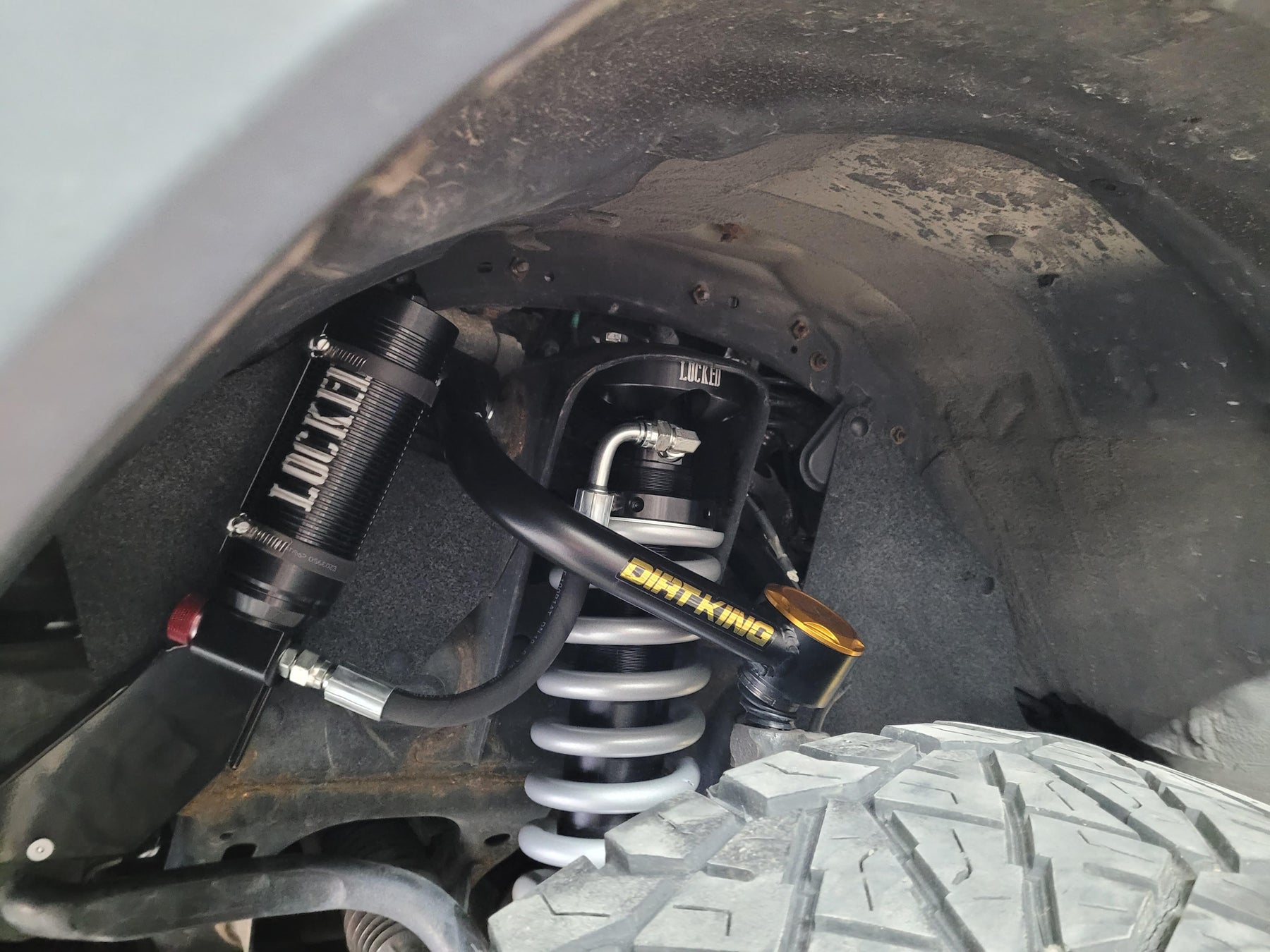

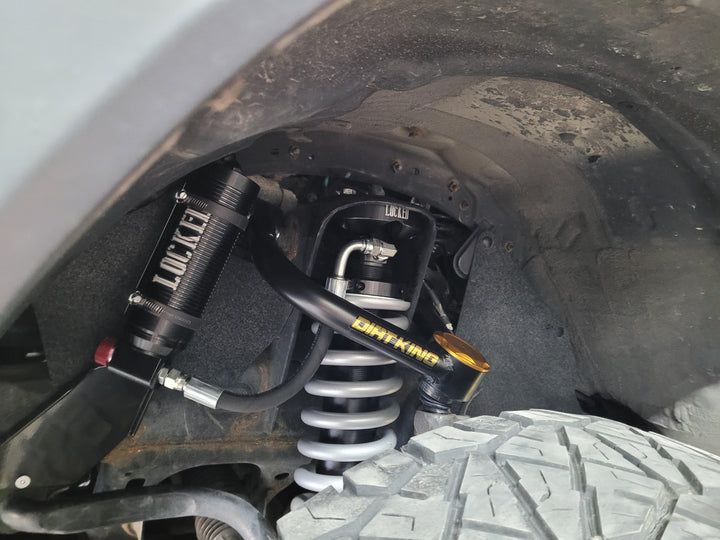

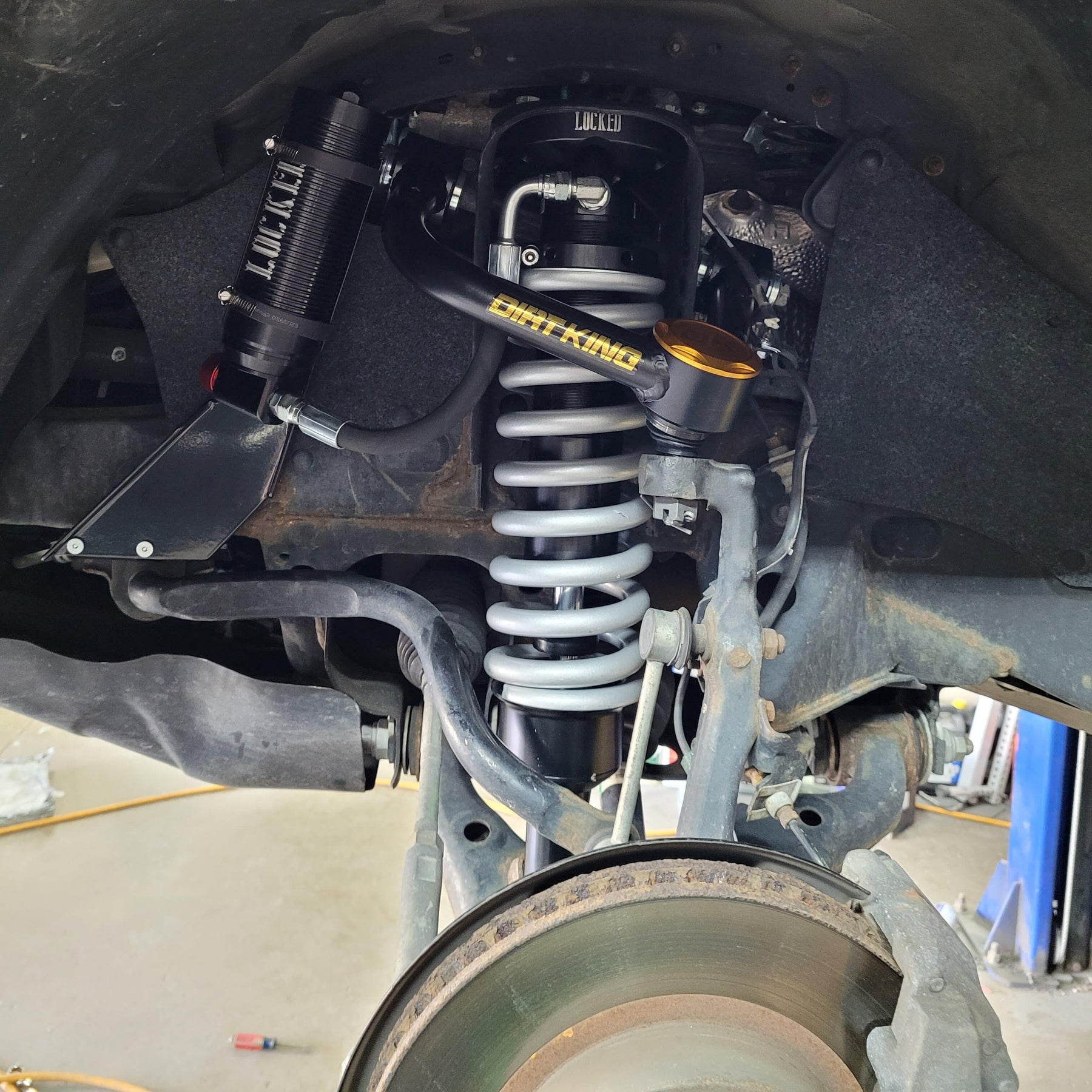

2005–2023 Toyota Tacoma 2.5" Coilover Lift Kit

Overview

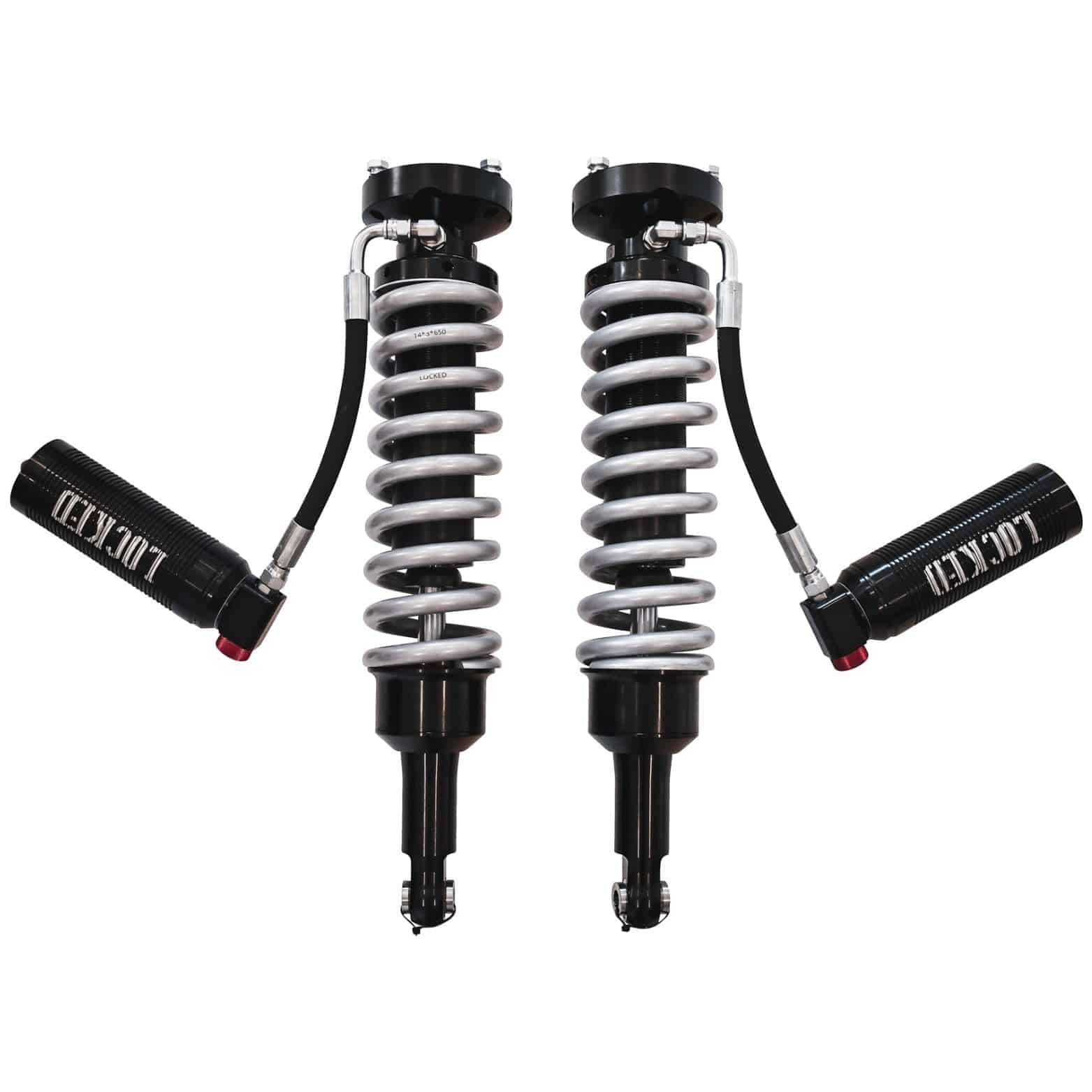

Upgrade your Tacoma with Locked Offroad’s 2.5" coilover lift kit engineered for excellent handling on and off-road. Specifically tuned for 2005–2023 Toyota Tacomas, this kit increases front wheel travel by up to 25% and includes 22 points of compression adjustment for complete ride control.

Built to Perform

Oversized 2.5” shock bodies for greater oil capacity and heat dissipation
Black zinc-coated steel bodies for corrosion resistance
4130 chromed shafts for strength and longevity
Buna seals and anodized 6061 aluminum components

Key Features

Direct bolt-on installation for 2005–2023 Toyota Tacoma
Adjustable ride height (spanner wrench included)

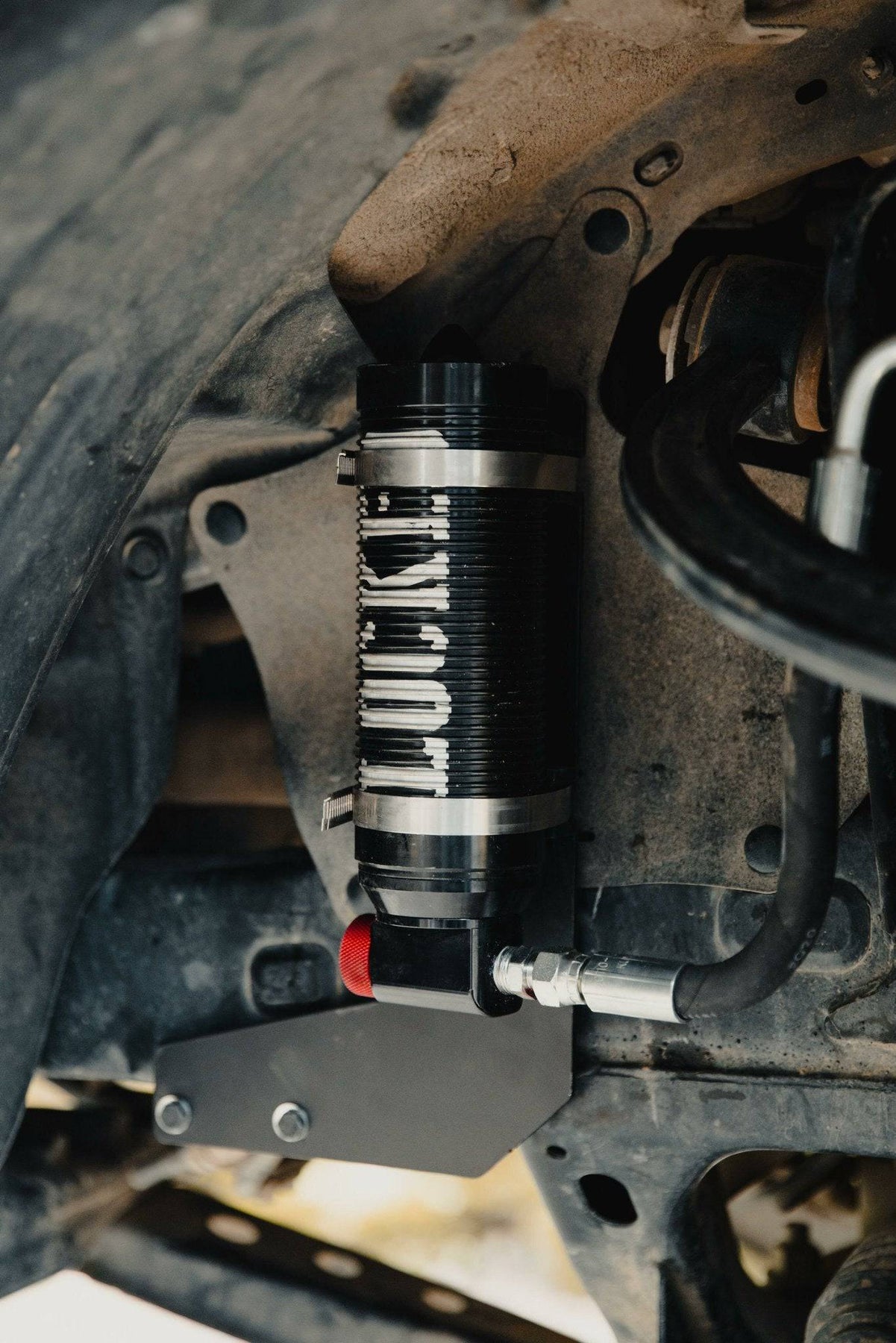

Finned Remote Reservoirs for improved cooling under load
22-position compression adjusters for precision tuning
Up to 25% more front wheel travel over stock
Excellent handling both on-road and off-road
Fully rebuildable, serviceable, and tunable
Aftermarket upper control arms required

Spring Rate Options

600 lb/in – For factory weight or light modifications (closest to OEM ride)
650 lb/in – For a front bumper, winch, and possibly rock sliders
700 lb/in – For bumper, winch, rock sliders, and full skid plates

Important Notes

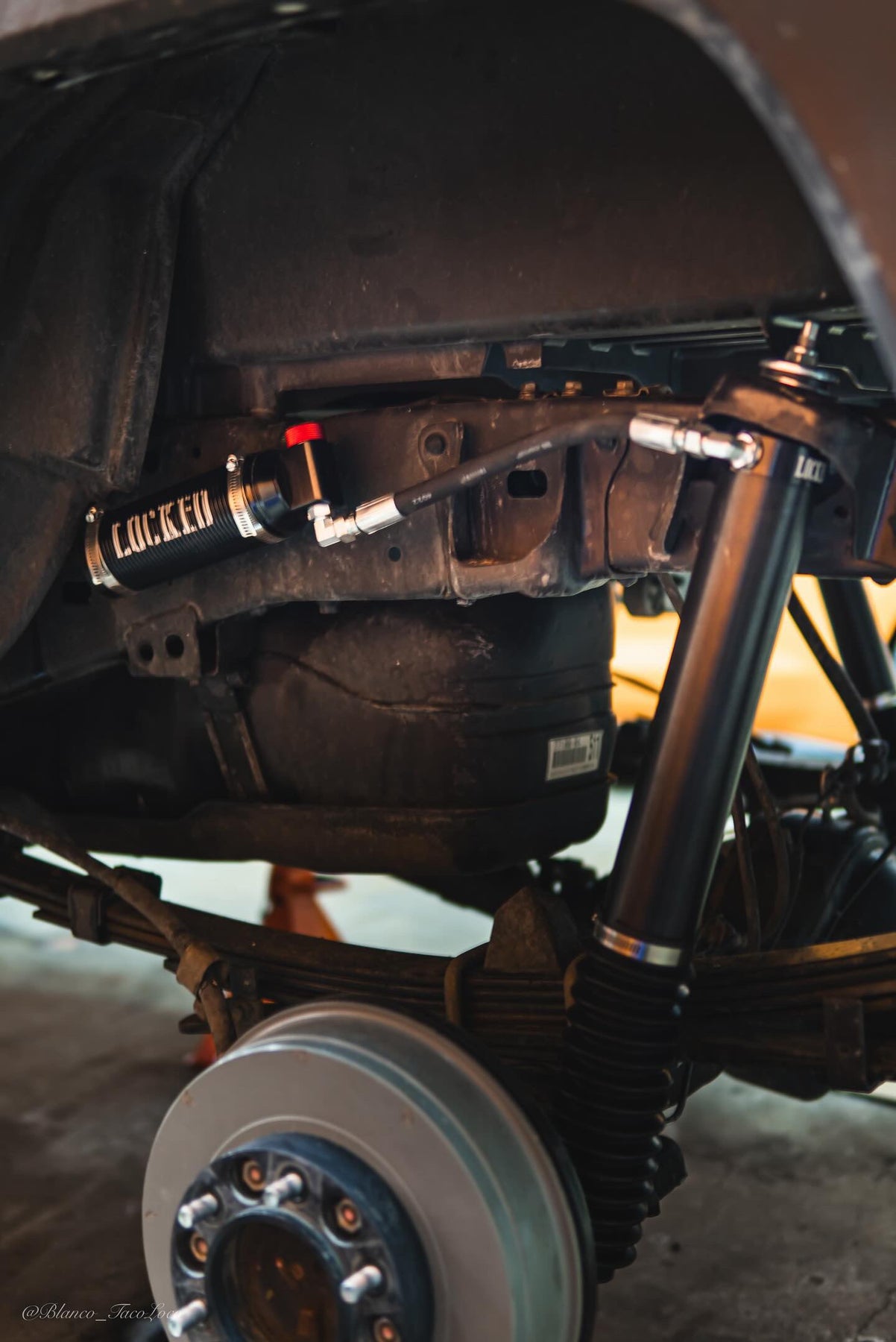

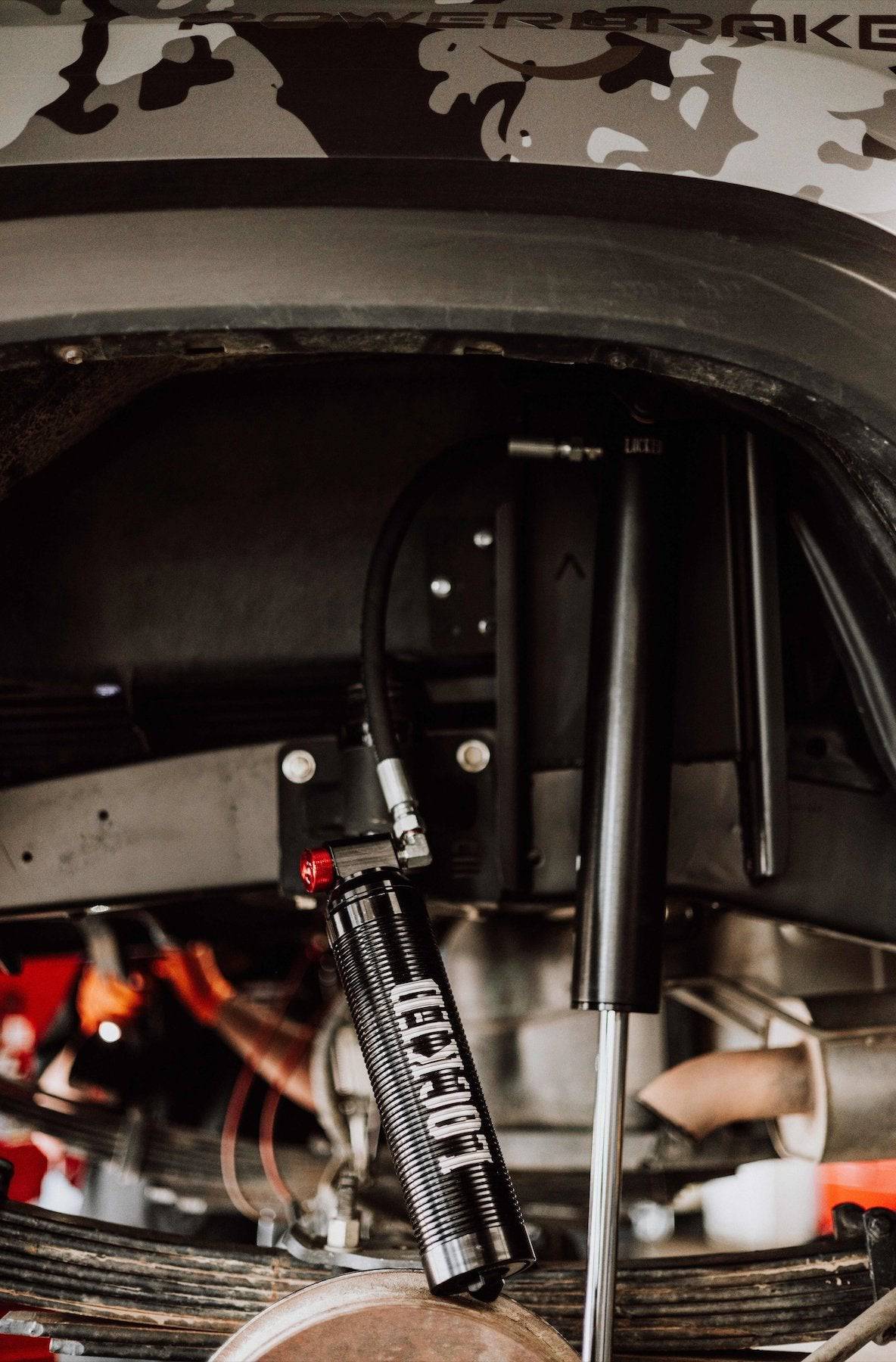

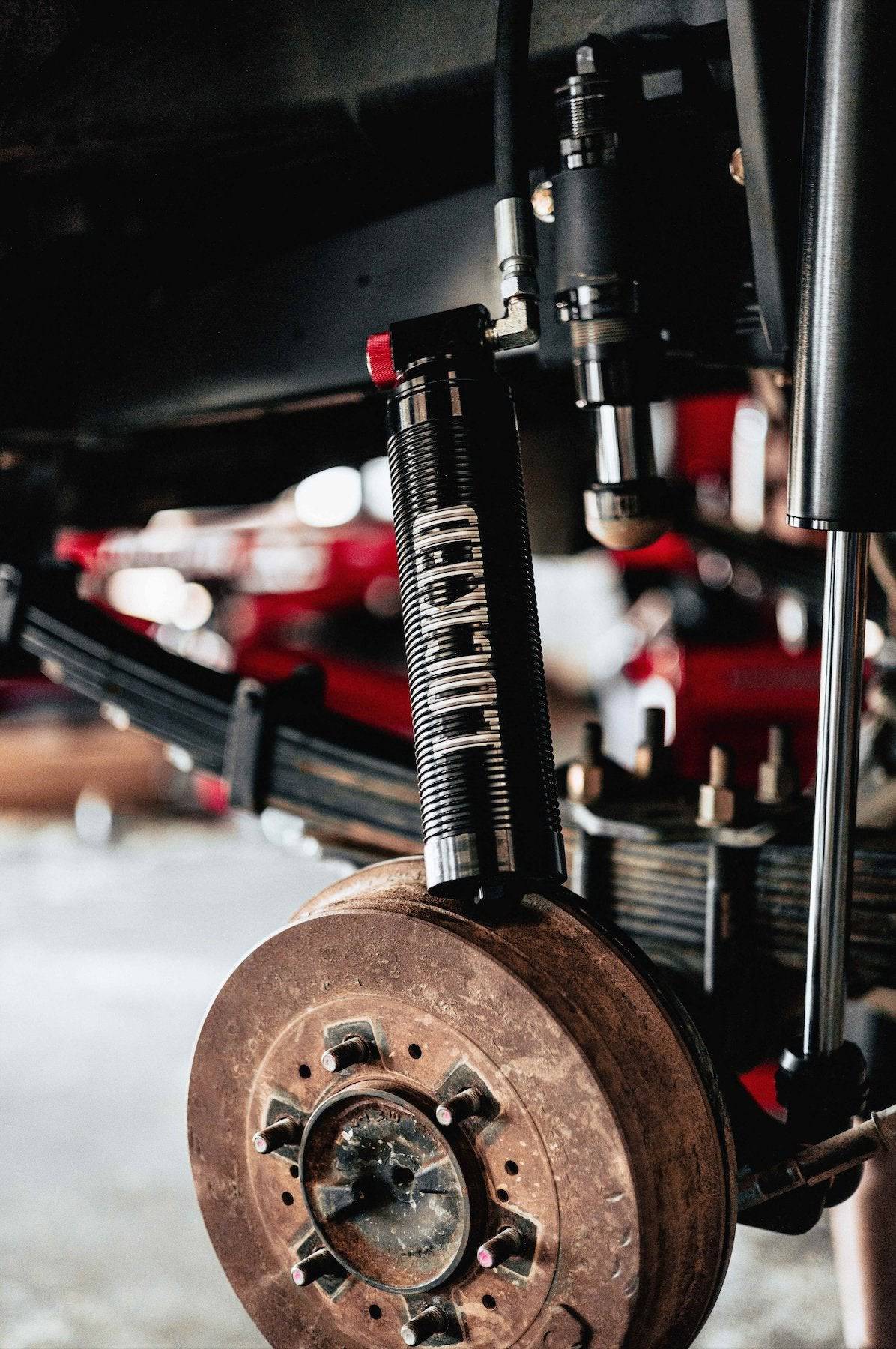

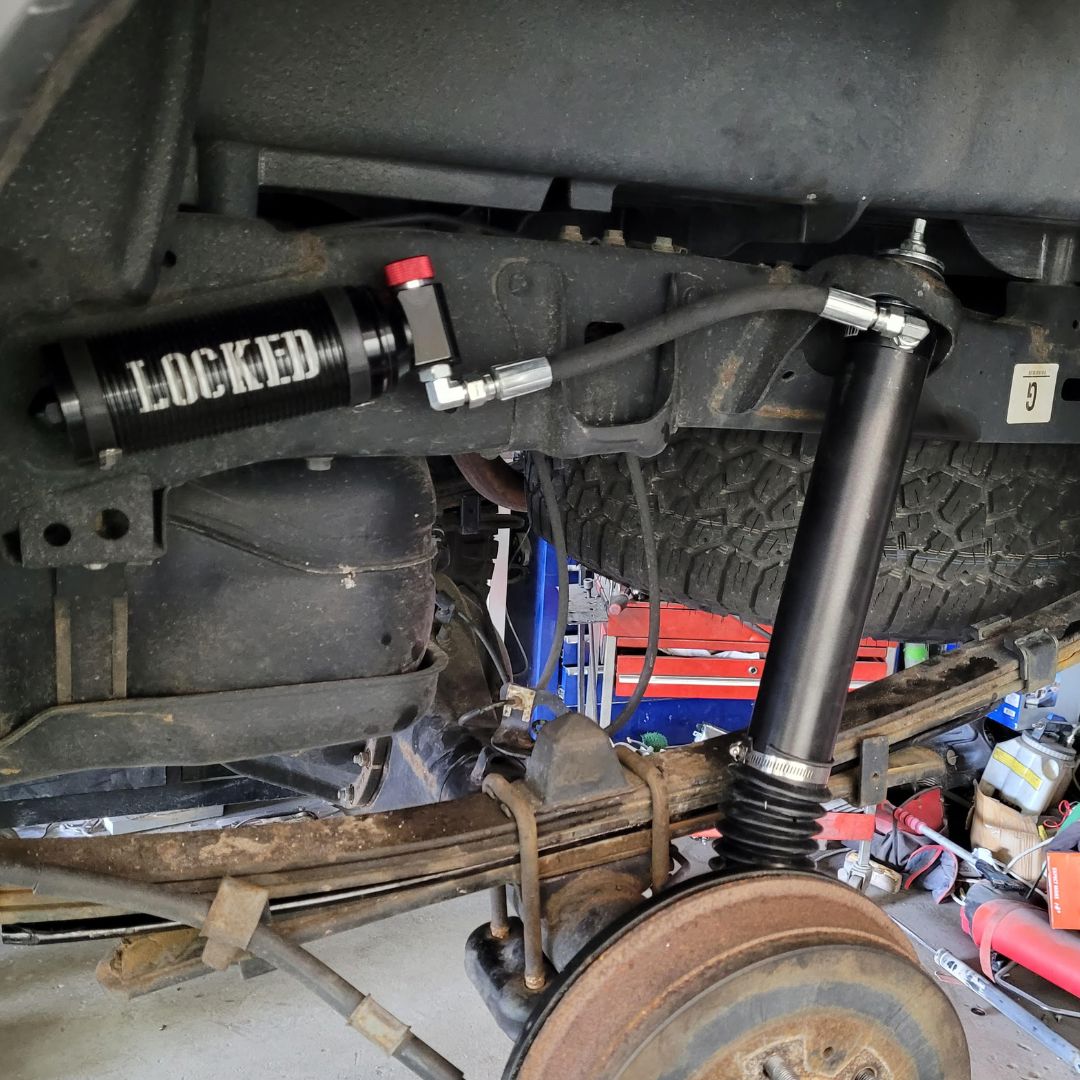

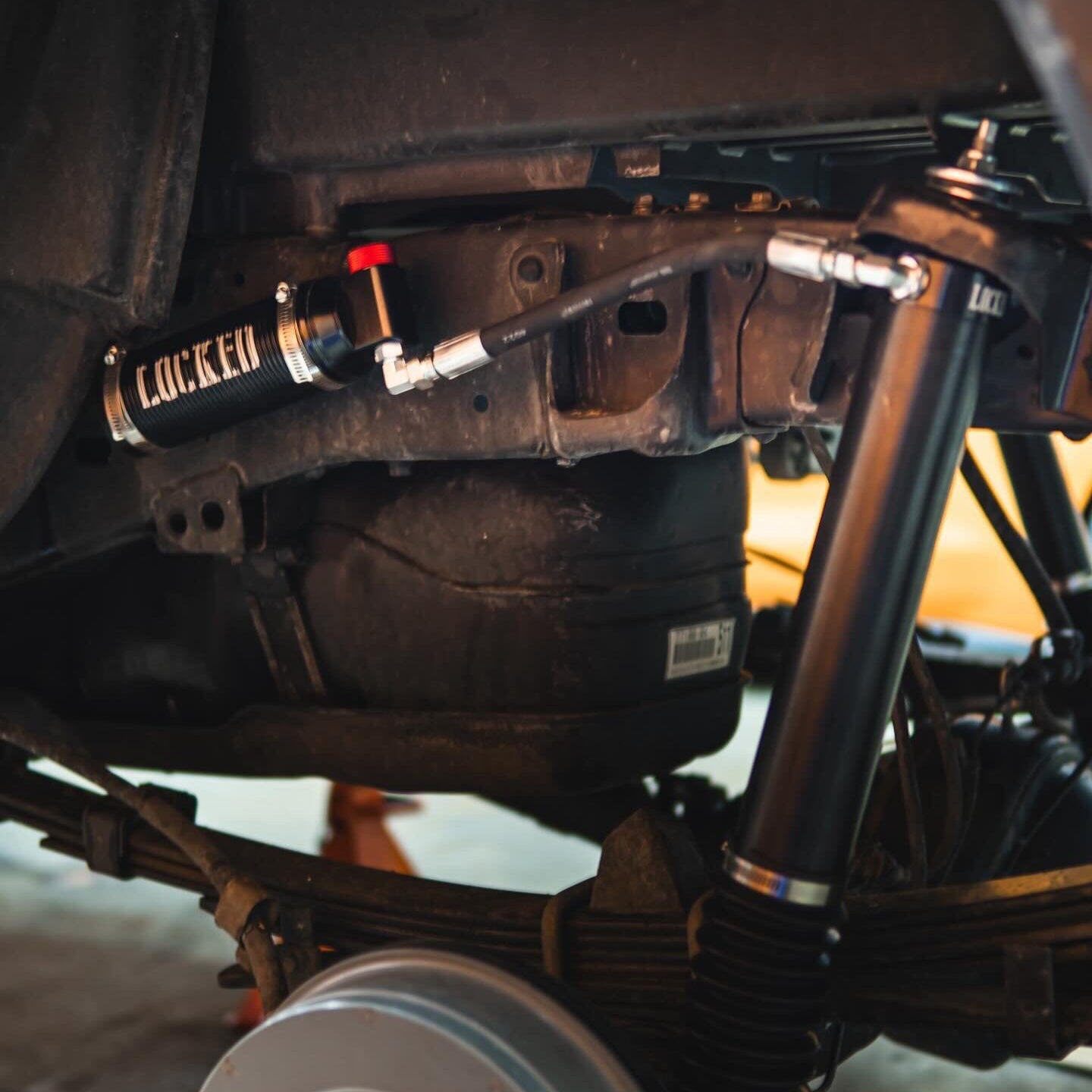

Tundra rear shock requires slight modification to the Tacomas upper shock mount. Hole will need to be widened away from the frame.

Rear shock relocation kit only required when using 12" or 14" rear smooth body shocks.
