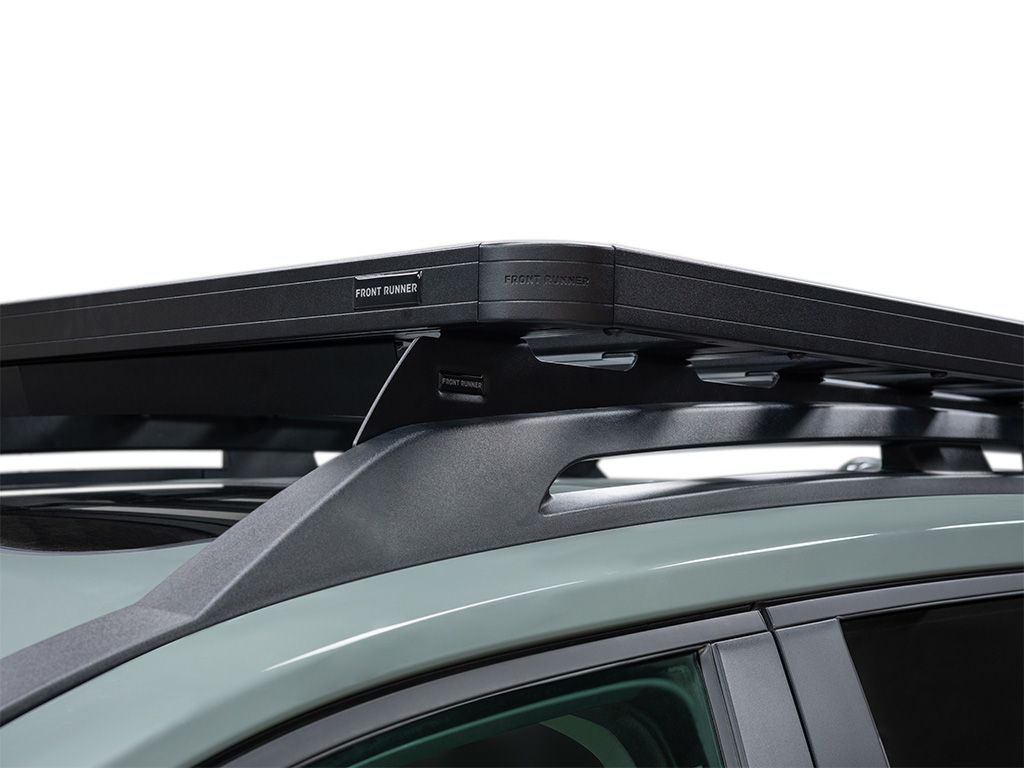

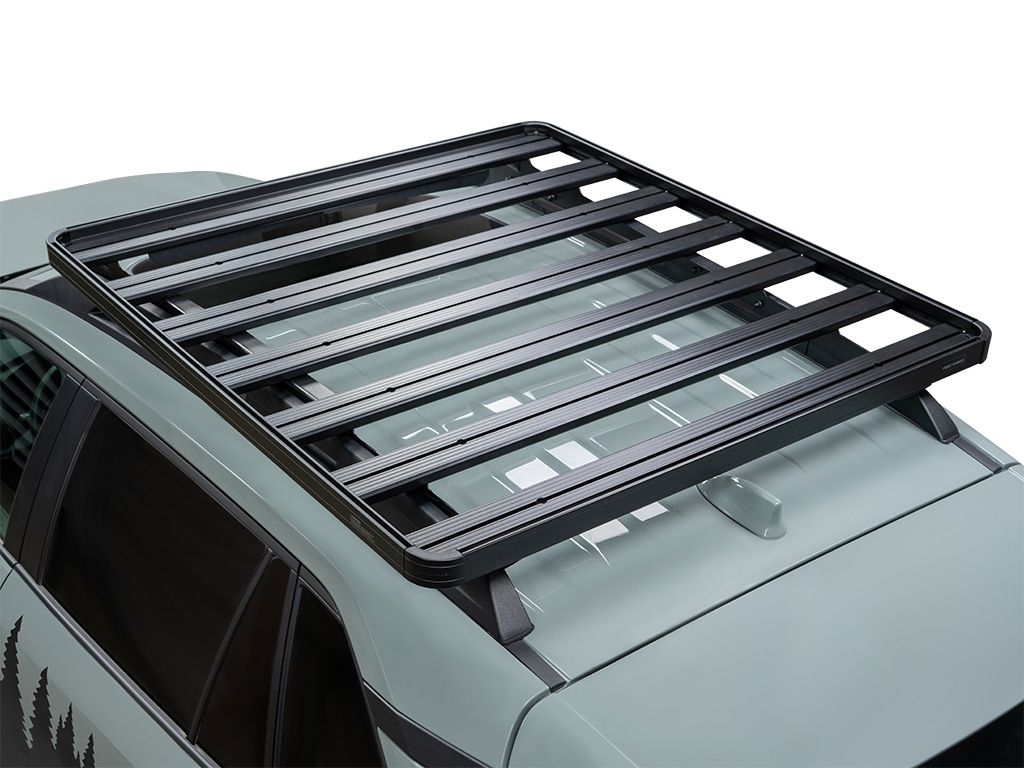

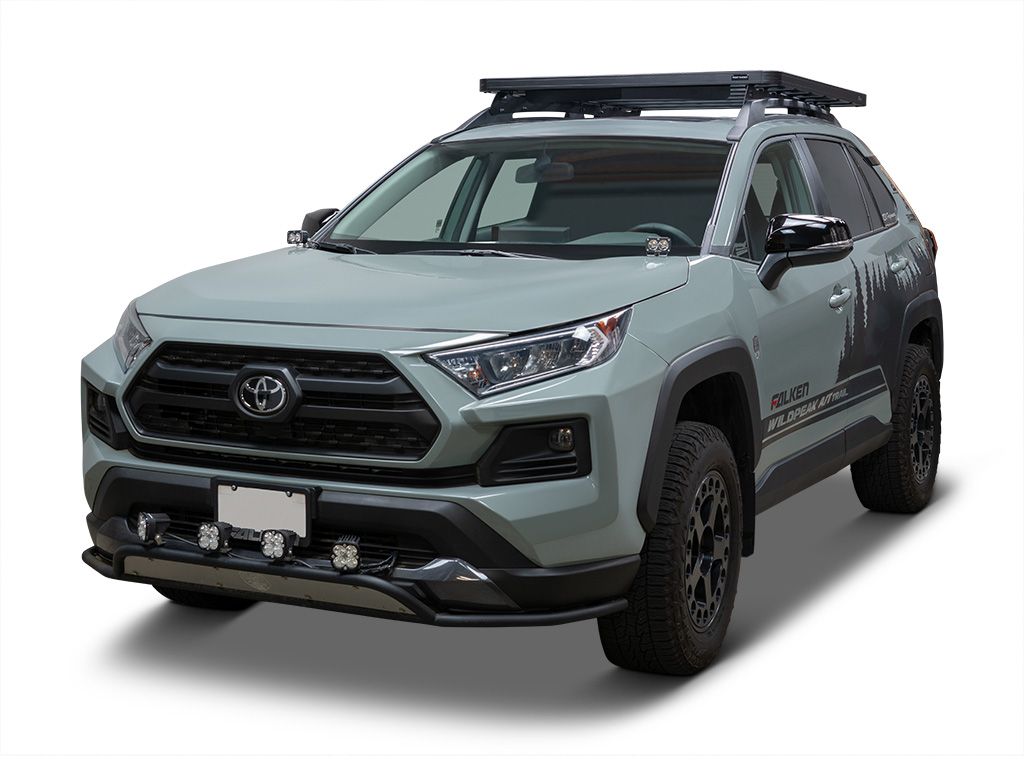

This 1358mm/53.5” long, full-size Slimline II Cargo Roof Rack Kit contains the Slimline II Tray, Wind Deflector, and two (2) Foot Rails to mount the Slimline II Tray to your Toyota RAV4 Adventure (2019-current). Drilling is required for installation.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
All Front Runner Racks are backed by a limited lifetime warranty.*
For further installation information, please see the fitment instructions in the INSTALL tab.
Note: This Rack kit is suitable for only RAV4 Adventure and TRD models.
KRTR005T - Toyota Rav4 Adventure / TRD-Offroad (2019-Current) Slimline II Roof Rack Kit - by Front Runner
1x FATR002 - Toyota Rav4 Adventure (2019-Current) Foot Rail
1x RRSTD07 - SLII Tray - 1255mm(W)X1358mm(L)
Black epoxy powder-coated T6 aluminum
High strength steel
Approximate Installed Weight: 29.01kg (63.96lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the roof of the vehicle.
Width: 440mm (17")
Length: 1730mm (68")
Height: 270mm (11")
Weight: 30kg (66lbs)
